ITEM:SCH026-DL

Essential Details:

Type:  Stainless Steel Window & Door Handles Lock

Color:  SS / PS / GB / MB / BR / SG / PG / SR / PR,etc.

Warranty: More than 5 years

After-sale Service: Online technical support, Free spare parts, Other

Project Solution Capability: graphic design, 3D model design, total solution for projects, Cross Categories

Consolidation, Others, Registered Door Hardware Adviser

Design Style: Modern

Place of Origin: Guangdong, China

Handle Form:  Solid & Hollow (Parameters are on the details page)

Handle Data: Fixed Mold , stainless steel  304

Mortise (lockcase) Form: Mortise 5572 /5072/6072/6068/4585/6085 ( Parameters are on the details page)

Cylinder Form: brass, Double/Half/Thumb Euro profile ,5/6 pins,3keys ,60/65/70/75/80/90 ect..

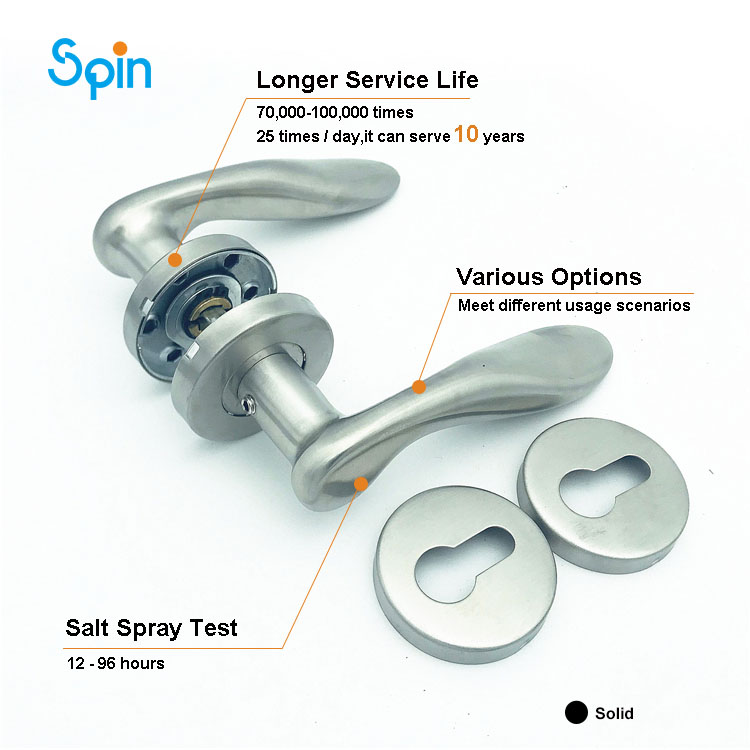

Service life: 50,000 -200,000times ( if need higher service life, please contact us)

Slat spray test: 24 - 96 hours

Applicable door thickness: 30-55mm,If you need other door thickness, please let us know

Sample:  support

OEM/ODM: support

Delivery time: 20-35 days after confirm the order

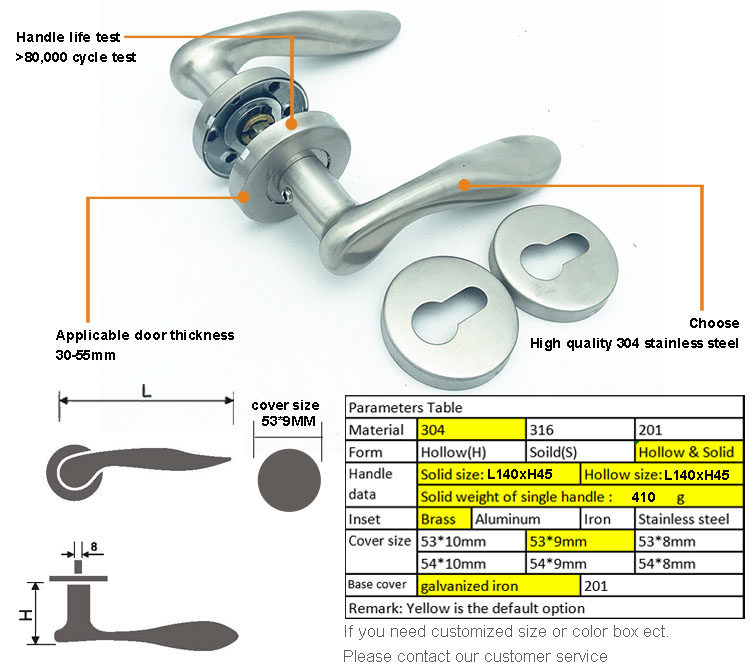

Stainless Steel Door Handle Data:


 fingerprint door lock handle

Item : SCH025-DL Stainless Steel sliding doors hidden pull handle door handle lock kit home office lever door lock

Material: Stainless Steel 304/201/316

With Decorative Ring

Handle Form : solid / hollow

Handle screw holes: default

Size: fixed mold

Inset: brass / stainless steel 201/ iron / aluminum

Cover rose size: 53*9MM

Base rose: galvanized iron, 6holes(hexagon)

a pair of keyholes(rosets)

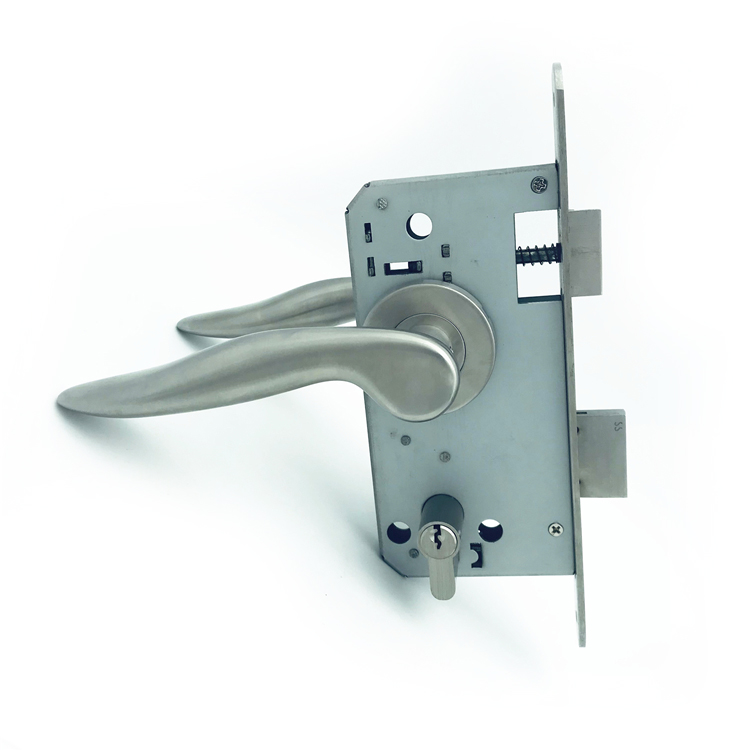

Door Mortice Lock Body Lockcase to suit Euro profile cylinder Data:


door lock handle set swing door handle lockFunction: Mechanical or Mute

Specification:

backset 50/55/60/70/80mm;

centre length  70/72/85mm;

forend  round or square

Material:

follower: 8*8 / 9*9 one piece , stainless steel / iron / zinc

latch:  stainless steel / zinc / mute

deadbolt: stainless steel / zinc / mute

strike:stainless steel 304 / 201 , 235*20*2.5mm(default)

strike size : (L) x(W)x(T) Length 225/230/235/245, Width 20/22/24, Thickness 2.0/2.5/3.0






Door Euro Profile Lock Cylinder Data:


stainless steel office glass door handle lockMaterial:

Cylinder Shell :  Copper / Zinc

Cylinder Plug : Copper

Front View :

A-Euro Profile Lock Cylinder (common key)

B-Lock Cylinder (computer keys)

C-Bathroom Lock Cylinder (none key)

D-Blade Lock Cylinder (blade key)

Side View:

A-Double Lock Cylinder

B-Half Lock Cylinder

C- Thumb Turn Lock Cylinder

Movable Detainer : 5 / 6 pins

Key:3/4/5 keys

Cam: R15*6.5 center and off center

Cylinder Length:

according to door thickness: 30/40/50/60/65/70/80/90/100/110/120/130mm...

According to the door strike

60mm (30/30)(40/30)(40/20)

70mm (35/35)(40/30)(45/25)

80mm (40/40)(45/35)(50/30)

90mm (45/45)(50/40)(60/30)

100mm....

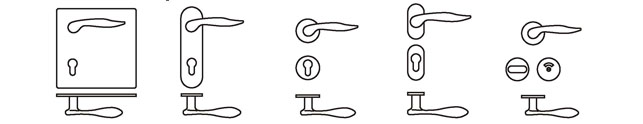

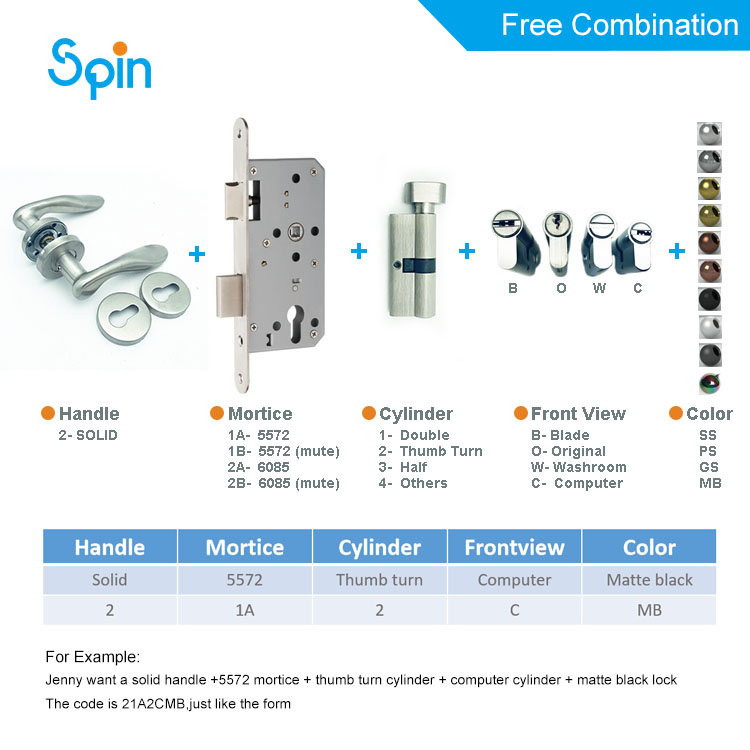

Combination Style & Finished :


home office lever door lock




Door Lock Packaging & Delivery:


door handle lock package.jpg

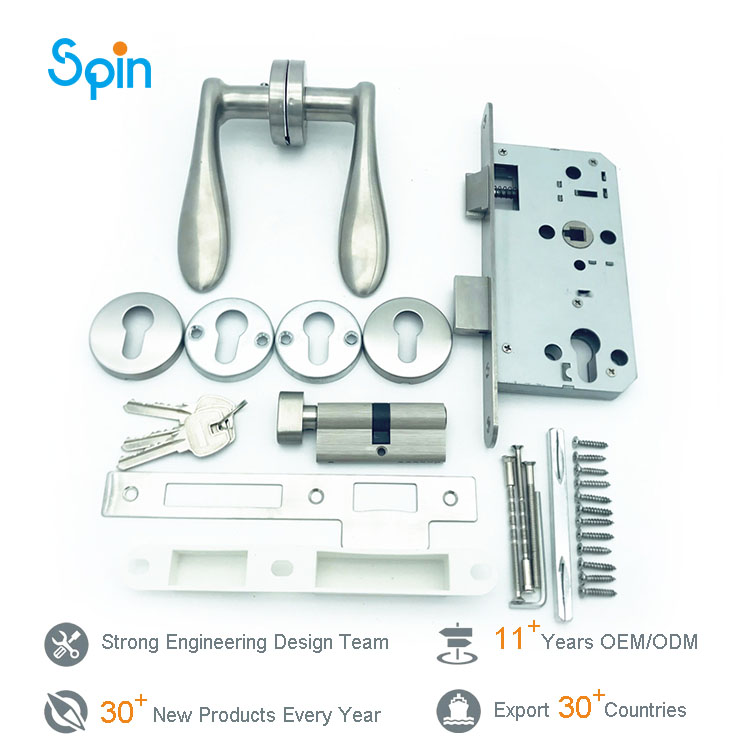

Fitting :


Door Handle fitting

1pcs ☐8x8x100mm spindle

2pcs M4*65mm fixing screws

8pcs steel wood screws

1pcs Hex key


Mortise fitting

1pcs Lock version

1pcs White plastic box

4pcs steel wood screws


Cylinder fitting

3pcs keys (default euro)

1pcs M4*65mm screw

Packaging Details:

(1)1 set in a box (Includes lock body + lock cylinder + door handle)

(2)10 sets in one carton"


Lead time
Quantity(sets)
1-1011-5051-5000>5000
Est time(days)71535To be negotiated
