ITEM：SCH003-DL
Essential Details:
Type: Stainless Steel Window & Door Handles Lock
Color: SS / PS / GB / MB / BR / SG / PG / SR / PR,etc.
Warranty: More than 5 years
After-sale Service: Online technical support, Free spare parts, Other
Project Solution Capability: graphic design, 3D model design, total solution for projects, Cross Categories
Consolidation, Others, Registered Door Hardware Adviser
Design Style: Modern
Place of Origin: Guangdong, China
Handle Form: Solid & Hollow (Parameters are on the details page)
Handle Data: Dia19*135 , stainless steel 304
Mortise (lockcase) Form: Mortise 5572 /5072/6072/6068/4585/6085 ( Parameters are on the details page)
Cylinder Form: brass, Double/Half/Thumb Euro profile ,5/6 pins,3keys ,60/65/70/75/80/90 ect..
Service life: 50,000 -200,000times ( if need higher service life, please contact us)
Slat spray test: 24 - 96 hours
Applicable door thickness: 30-55mm,If you need other door thickness, please let us know
Sample: support
OEM/ODM: support
Delivery time: 20-35 days after confirm the order

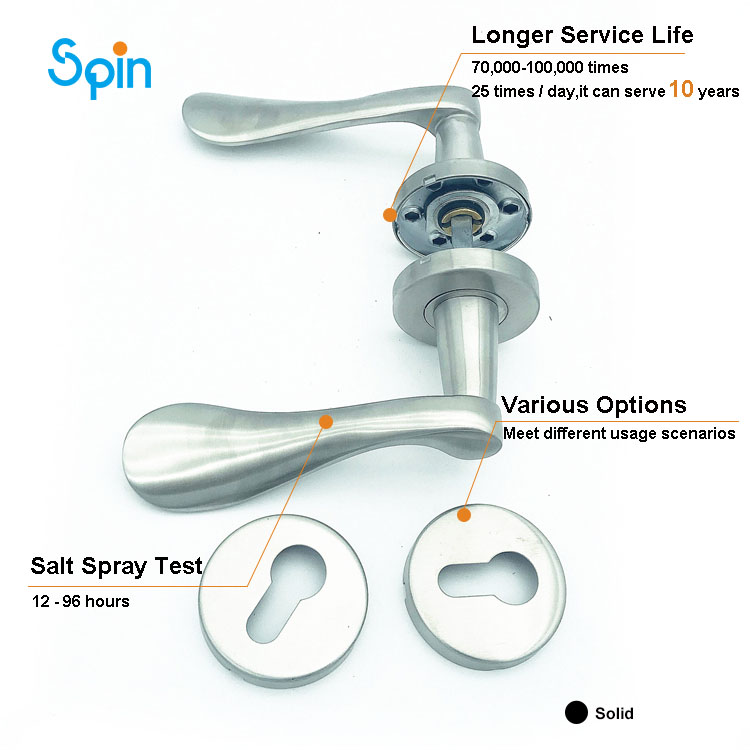

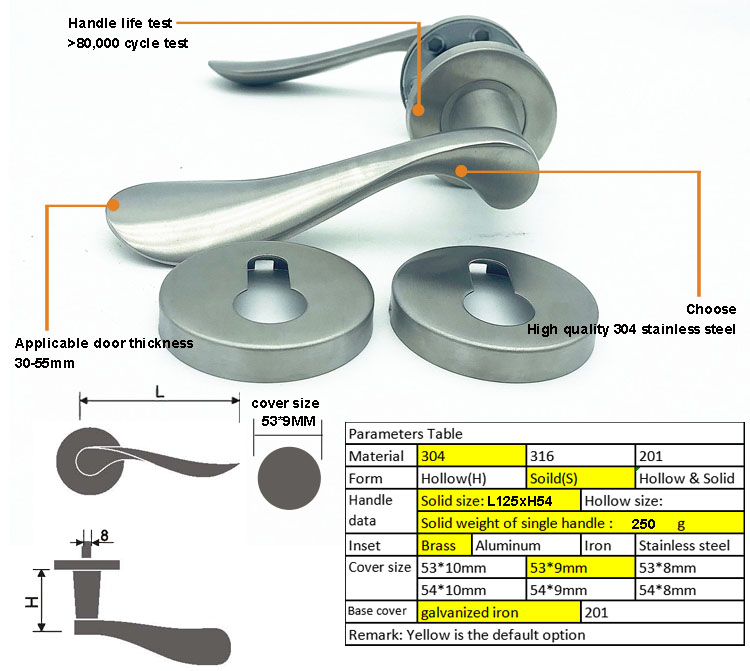

Stainless Steel Door Handle Data:

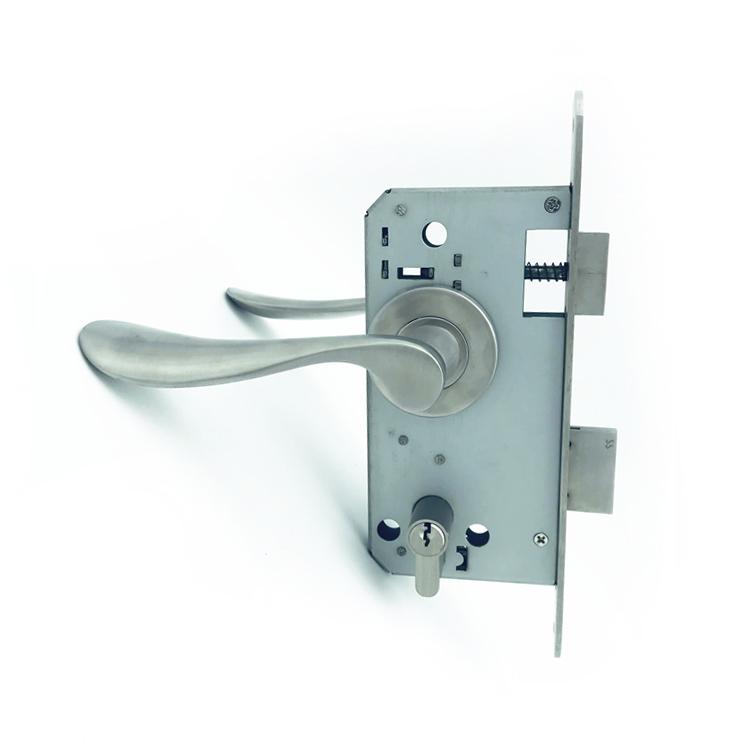

Item : SCH003-DL Stainless Steel Door Lock Handle Set With Key
Material: Stainless Steel 304/201/316
With Decorative Ring
Handle Form : solid
Handle screw holes: default
Size: fixed mold
Inset: brass / stainless steel 201/ iron / aluminum
Cover rose size: 53*9MM
Base rose: galvanized iron, 6holes(hexagon)
a pair of keyholes(rosets)

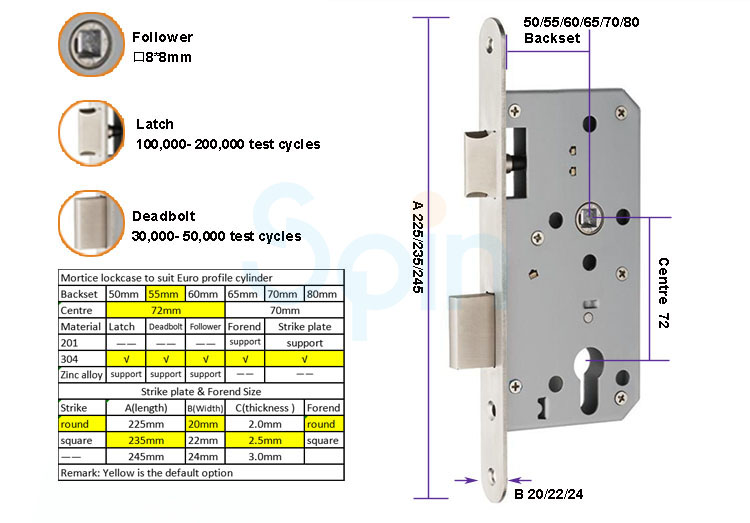

Door Mortice Lock Body Lockcase to suit Euro profile cylinder Data:
Function: Mechanical or Mute
Specification:
backset 50/55/60/70/80mm;
centre length 70/72/85mm;
forend round or square
Material:
follower: 8*8 / 9*9 one piece , stainless steel / iron / zinc
latch: stainless steel / zinc / mute
deadbolt: stainless steel / zinc / mute
strike：stainless steel 304 / 201 , 235*20*2.5mm(default)
strike size : (L) x(W)x(T) Length 225/230/235/245, Width 20/22/24, Thickness 2.0/2.5/3.0

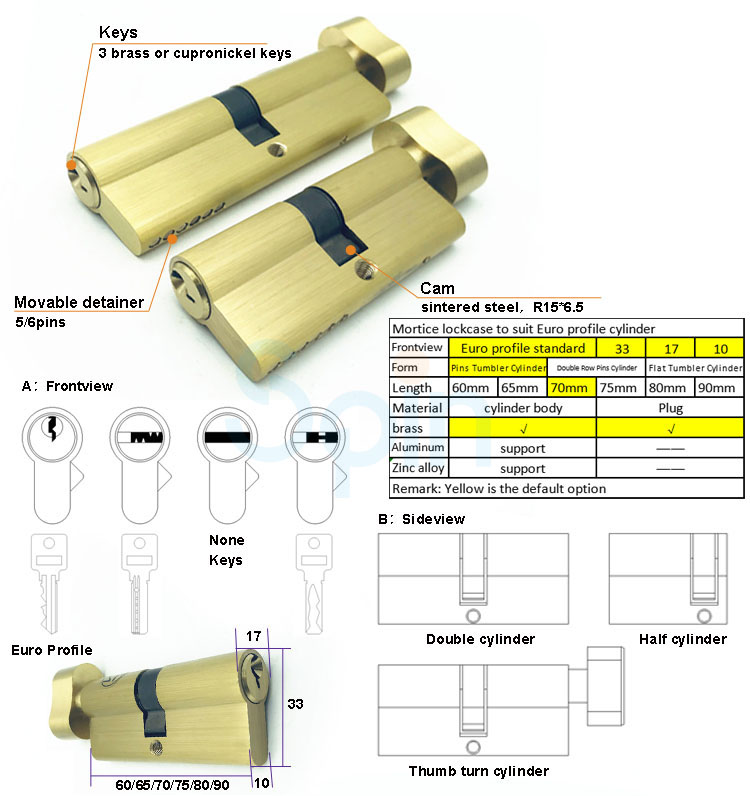

Door Euro Profile Lock Cylinder Data:
Material:
Cylinder Shell : Copper / Zinc
Cylinder Plug : Copper
Front View :
A-Euro Profile Lock Cylinder (common key)
B-Lock Cylinder (computer keys)
C-Bathroom Lock Cylinder (none key)
D-Blade Lock Cylinder (blade key)
Side View:
A-Double Lock Cylinder
B-Half Lock Cylinder
C- Thumb Turn Lock Cylinder
Movable Detainer : 5 / 6 pins
Key：3/4/5 keys
Cam: R15*6.5 center and off center
Cylinder Length:
according to door thickness: 30/40/50/60/65/70/80/90/100/110/120/130mm...
According to the door strike
60mm (30/30)(40/30)(40/20)
70mm (35/35)(40/30)(45/25)
80mm (40/40)(45/35)(50/30)
90mm (45/45)(50/40)(60/30)
100mm....

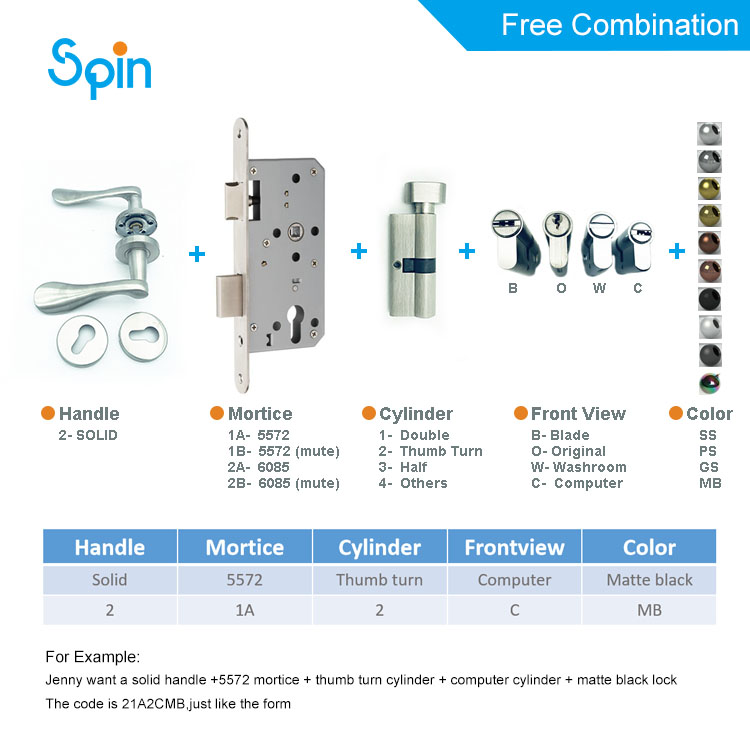

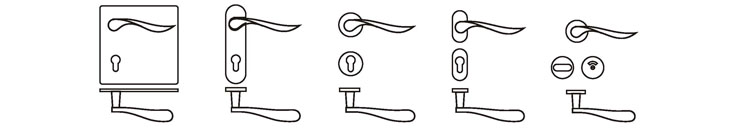

Combination Style & Finished :
Door Lock Packaging & Delivery:

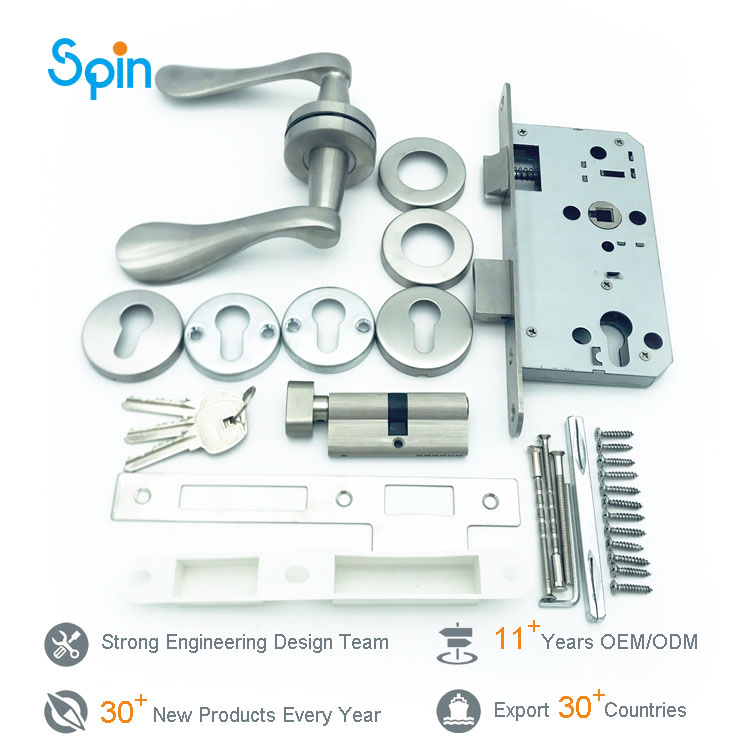

Fitting :
Door Handle fitting
1pcs ☐8x8x100mm spindle
2pcs M4*65mm fixing screws
8pcs steel wood screws
1pcs Hex key
Mortise fitting
1pcs Lock version
1pcs White plastic box
4pcs steel wood screws
Cylinder fitting
3pcs keys （default euro）
1pcs M4*65mm screw
Packaging Details:
(1)1 set in a box (Includes lock body + lock cylinder + door handle)
(2)10 sets in one carton"
| Lead time | ||||
| Quantity(sets) | 1-10 | 11-50 | 51-5000 | >5000 |
| Est time(days) | 7 | 15 | 35 | To be negotiated |
