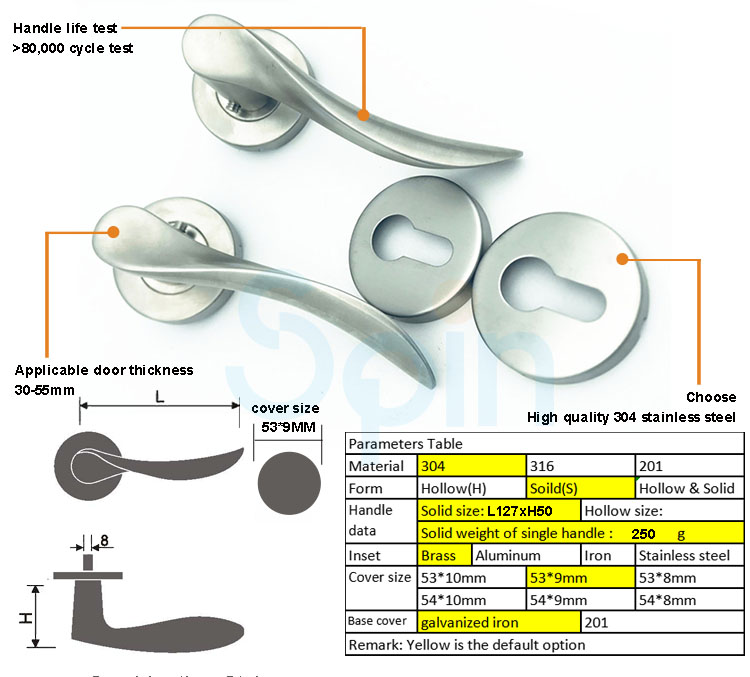

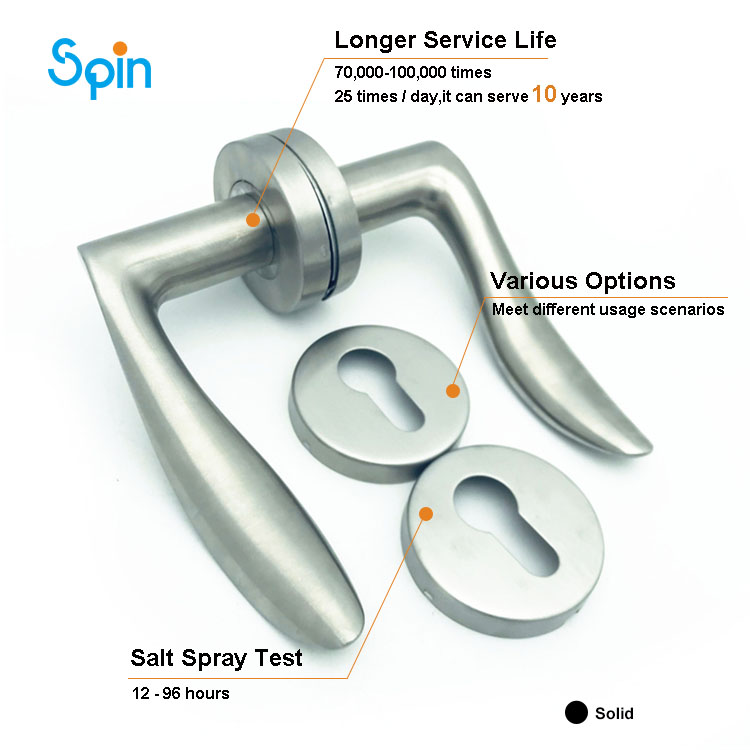

Stainless Steel Door Handle Data:

Item : SCH002-DL Stainless Steel Door Lock Handle Set

Material: Stainless Steel 304/201/316

With Decorative Ring

Handle Form : hollow & solid both

Handle screw holes: default

Size: fixed mold

Inset: brass / stainless steel 201/ iron / aluminum

Cover rose size: 53*9MM

Base rose: galvanized iron, 6holes(hexagon)

a pair of keyholes(rosets)

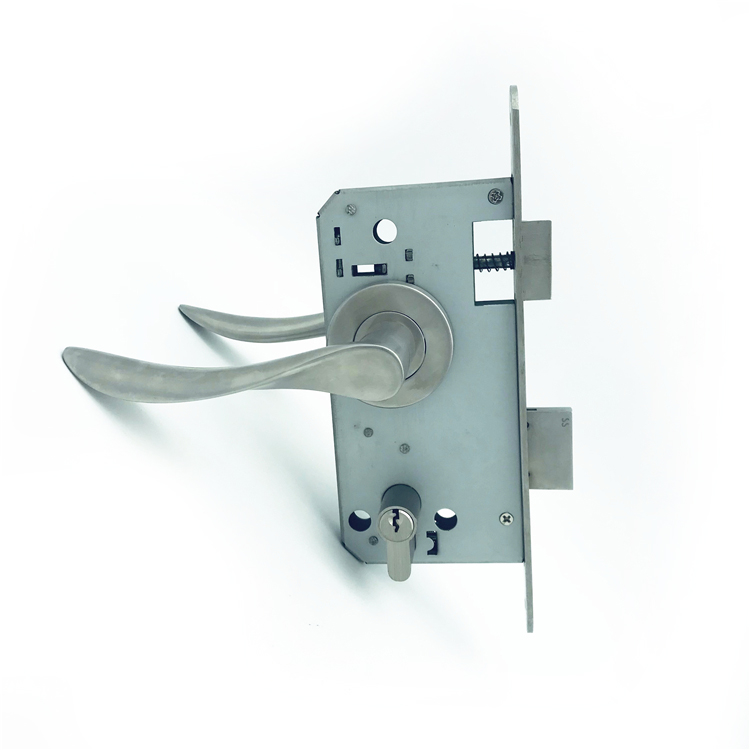

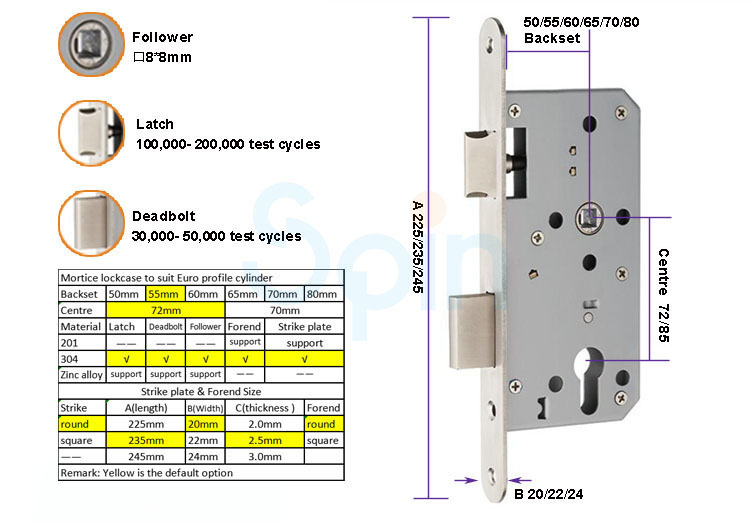

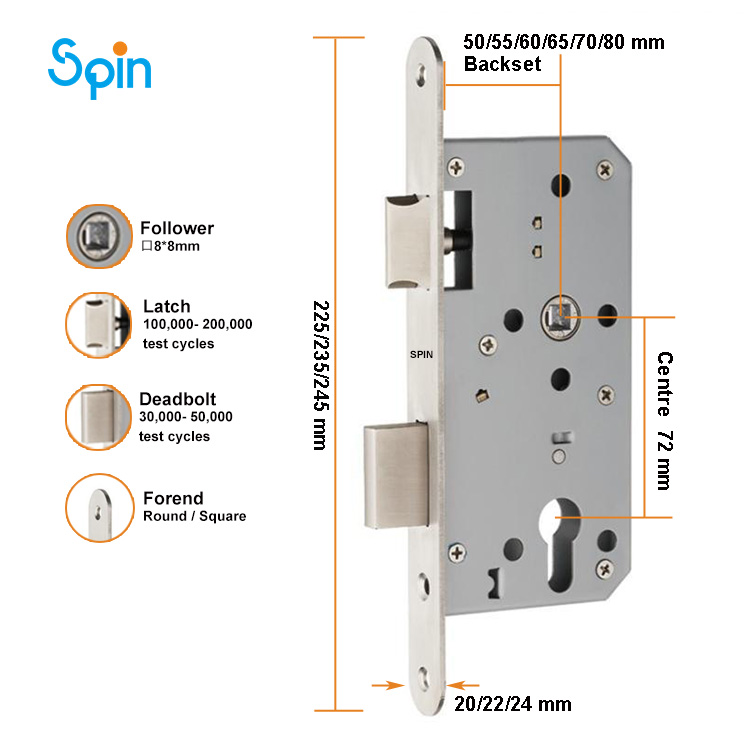

Door Mortice Lock Body Lockcase to suit Euro profile cylinder Data:

Function: Mechanical or Mute

Specification:

backset 50/55/60/70/80mm;

centre length  70/72/85mm;

forend  round or square

Material:

follower: 8*8 / 9*9 one piece , stainless steel / iron / zinc

latch:  stainless steel / zinc / mute

deadbolt: stainless steel / zinc / mute

strike：stainless steel 304 / 201 , 235*20*2.5mm(default)

strike size : (L) x(W)x(T) Length 225/230/235/245, Width 20/22/24, Thickness 2.0/2.5/3.0

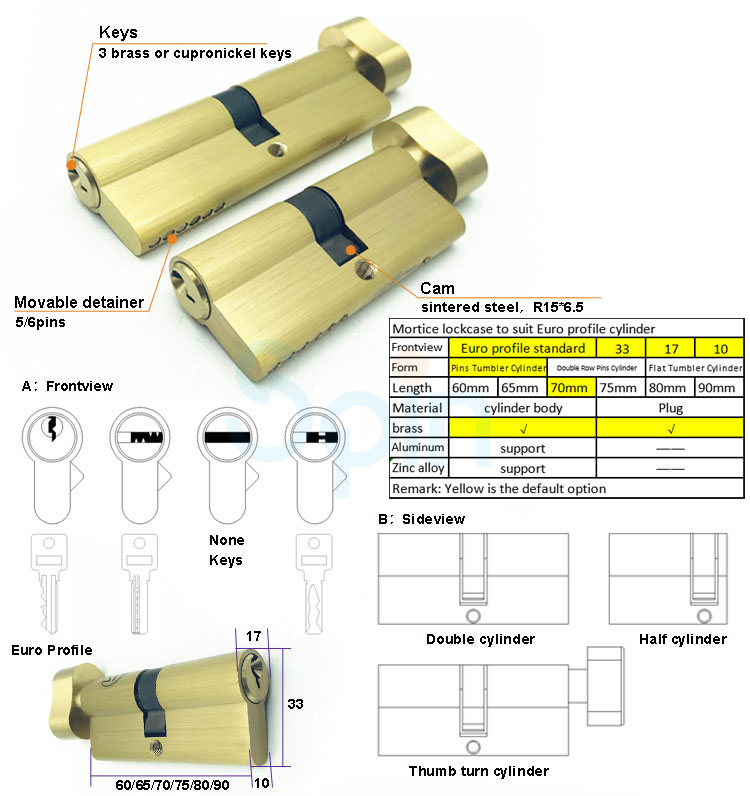

Door Euro Profile Lock Cylinder Data:

Material:

Cylinder Shell :  Copper / Zinc

Cylinder Plug : Copper

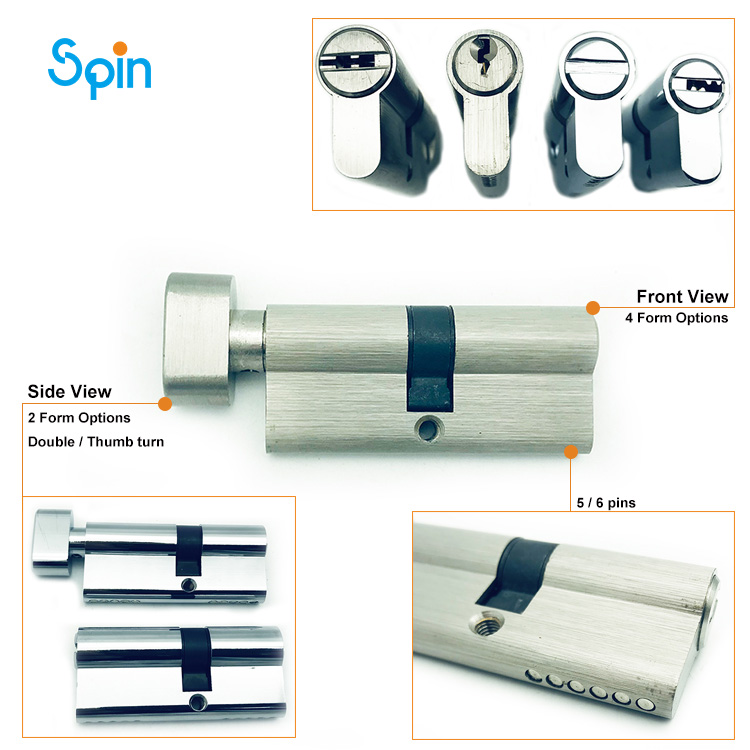

Front View :

A-Euro Profile Lock Cylinder (common key)

B-Lock Cylinder (computer keys)

C-Bathroom Lock Cylinder (none key)

D-Blade Lock Cylinder (blade key)

Side View:

A-Double Lock Cylinder

B-Half Lock Cylinder

C- Thumb Turn Lock Cylinder

Movable Detainer : 5 / 6 pins

Key：3/4/5 keys

Cam: R15*6.5 center and off center

Cylinder Length:

according to door thickness: 30/40/50/60/65/70/80/90/100/110/120/130mm...

According to the door strike

60mm (30/30)(40/30)(40/20)

70mm (35/35)(40/30)(45/25)

80mm (40/40)(45/35)(50/30)

90mm (45/45)(50/40)(60/30)

100mm....

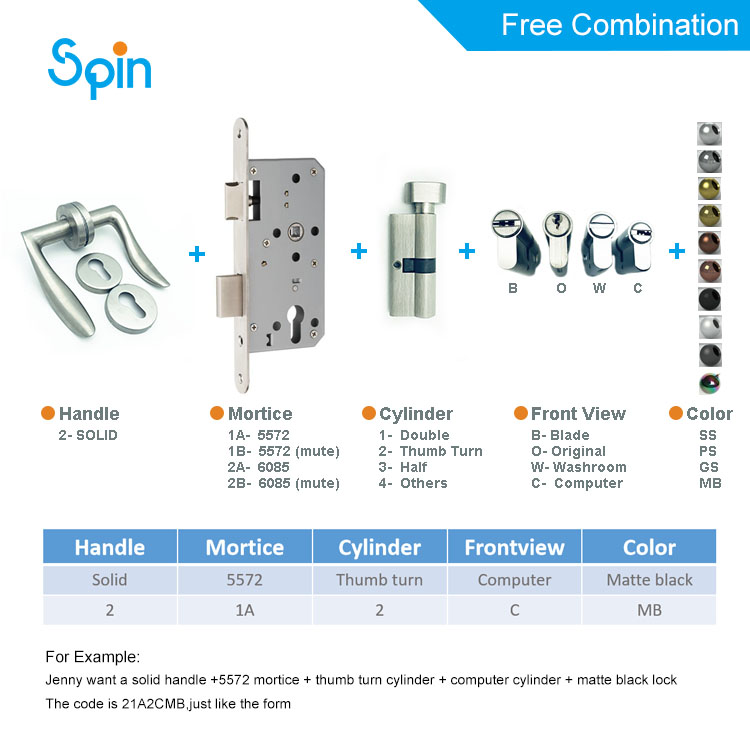

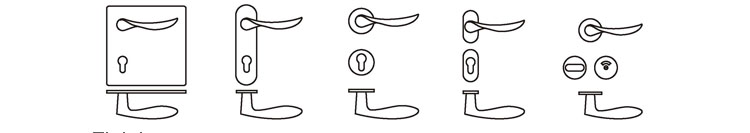

Combination Style & Finished :

Door Lock Packaging & Delivery:

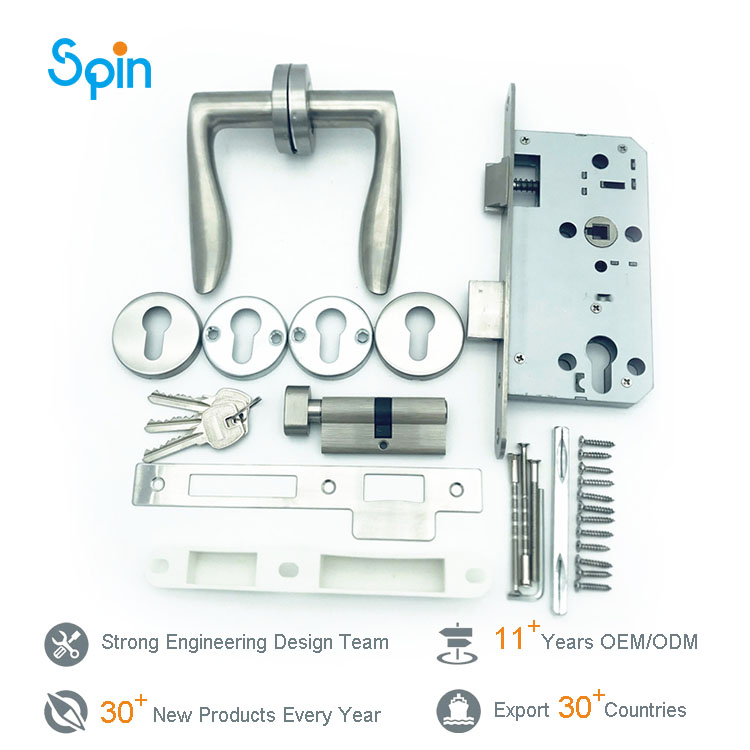

Fitting :

Door Handle fitting

1pcs ☐8x8x100mm spindle

2pcs M4*65mm fixing screws

8pcs steel wood screws

1pcs Hex key

Mortise fitting

1pcs Lock version

1pcs White plastic box

4pcs steel wood screws

Cylinder fitting

3pcs keys （default euro）

1pcs M4*65mm screw

Packaging Details:

(1)1 set in a box (Includes lock body + lock cylinder + door handle)

(2)10 sets in one carton"
